IT & SECURITY
Access Control & Time Attendance

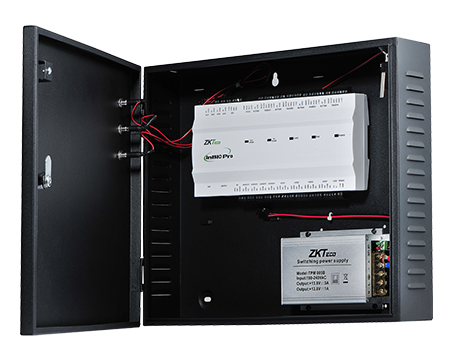

Multi Door Controller - Biometric Control Panel
InBio Pro Plus Series is a project oriented, high-end product line with distinctive features, including embedded facial and fingerprint authentication, as well as advanced access control functions. Equipped with TCP/IP, it enables robust remote management and connectivity over local (LAN) and wide area networks (WAN), enhancing deployment flexibility and scalability.
Specifications:
- Operation System- Linux OS
- Total Number of User Capacity-100,000
- Transaction Capacity-500,000
- Card Capacity-100,000 (1:N)
- Face Capacity-3,000 (1:N)
- Fingerprint Capacity-20,000 (1:N)
- Authentication Method- Card / Password / Fingerprint / Face
- Access Control Interface- Wiegand (Card Reader), RS-485(RS-485 Card Reader/ Fingerprint Reader / Facial Recognition Reader)
- Power Supply-9.6V- 14.4V DC
- Software - ZKBio CVSecurity

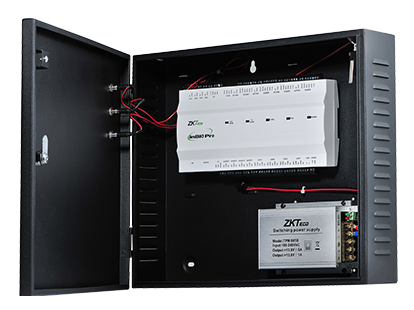

InBio Pro Series is a project oriented high-end product line with unique features such as embedded fingerprint verification and advanced access control functions, which can be managed by TCP/IP communication thru LAN or WAN networks. The InBio Pro Series are the perfect match for ZKBioSecurity web based software platform to provide a full featured biometric security solution. In combination with the FR1300 RS485 reader, the panels can authenticate users under multiple verification modes such as fingerprint, card and password for a higher security level.
Specifications:
- CPU-32 bit 1.2GHz CPU
- Card Capacity-60,000 (1:N)
- Fingerprint Capacity-20,000 (1:N)
- Log Events Capacity-100,000
- Communication-TCP/IP
- Number of Doors Controlled-InBio-160 Pro: 1 Door| InBio-260 Pro: 2 Door|InBio-460 Pro: 4 Door
- Readers Supported- InBio-160 Pro: 4 | InBio-260 Pro: 8 | InBio-460 Pro: 12
- Types of Readers Supported-26-bit Wiegand and RS485 FR Series Reader
- Power Supply- 9.6V - 14.4V DC
